DIAMAGS SPEED
Is ITEL patented, high-performance active compensation system engineered to eliminate low-frequency magnetic field disturbances and protect MRI systems in challenging environments affected by low-frequency AC and DC magnetic disturbances.
in MRI Installations
Uncontrolled low-frequency magnetic field fluctuations from the surrounding environment can seriously degrade MRI image quality — and even make installation impossible in some sites.
COMMON SOURCES OF INTERFERENCE
Subways, railways, trains
Electrical distribution equipment
Elevators and moving metal structures
Industrial and urban infrastructure
Uncontrolled low-frequency magnetic field fluctuations from the surrounding environment can seriously degrade MRI image quality — and even make installation impossible in some sites.
Subways, railways, trains
Elevators and moving metal structures
Electrical distribution equipment
Industrial and urban infrastructure

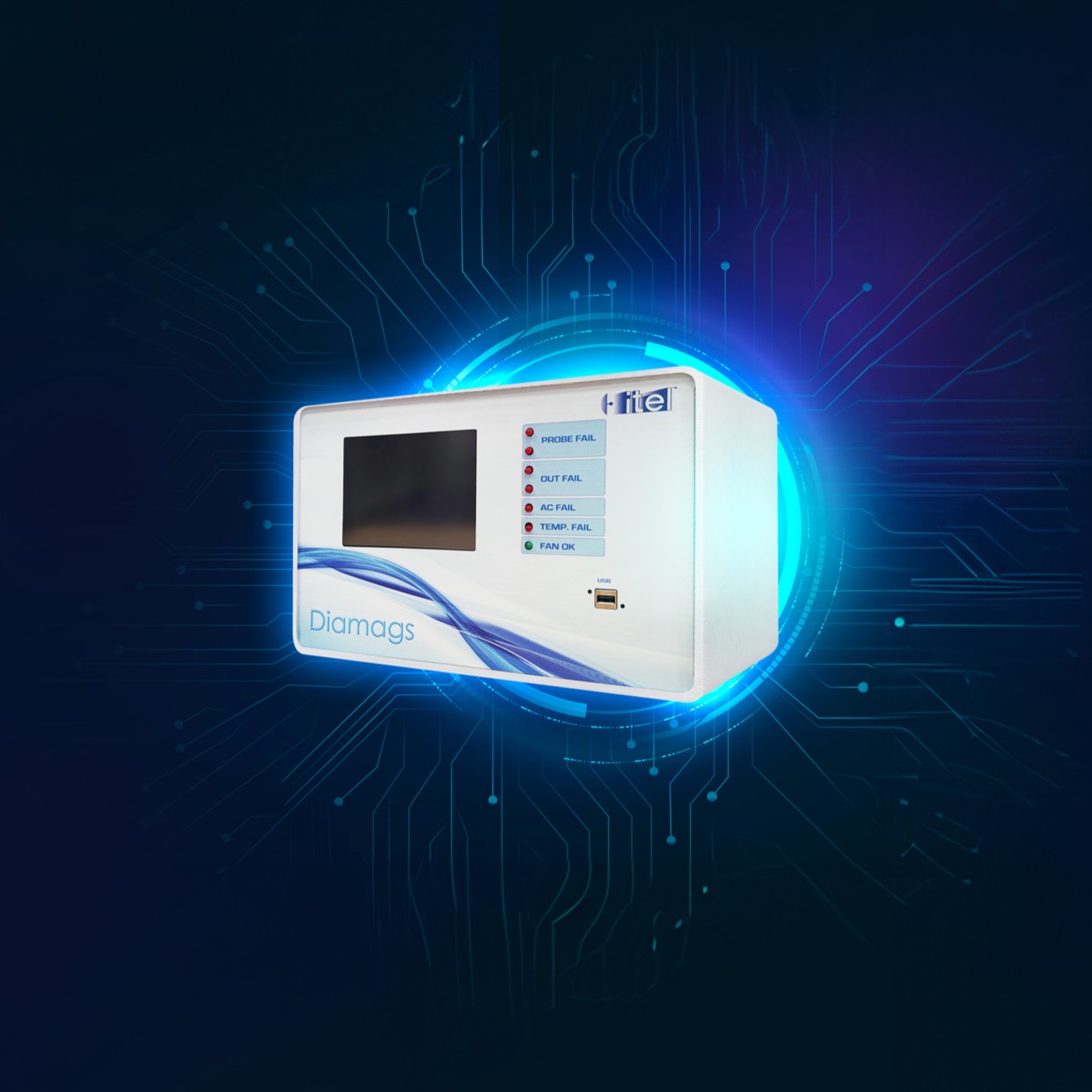

DIAMAGS SPEED: Active Magnetic Compensation System
Introducing DIAMAGS SPEED
Designed for Real-World MRI Environments
DIAMAGS SPEED is engineered for urban hospitals, retrofit installations, and high-interference sites, offering a reliable solution where passive shielding alone is not enough.
Why DIAMAGS SPEED Makes the Difference
See the difference in image quality when DIAMAGS SPEED is active

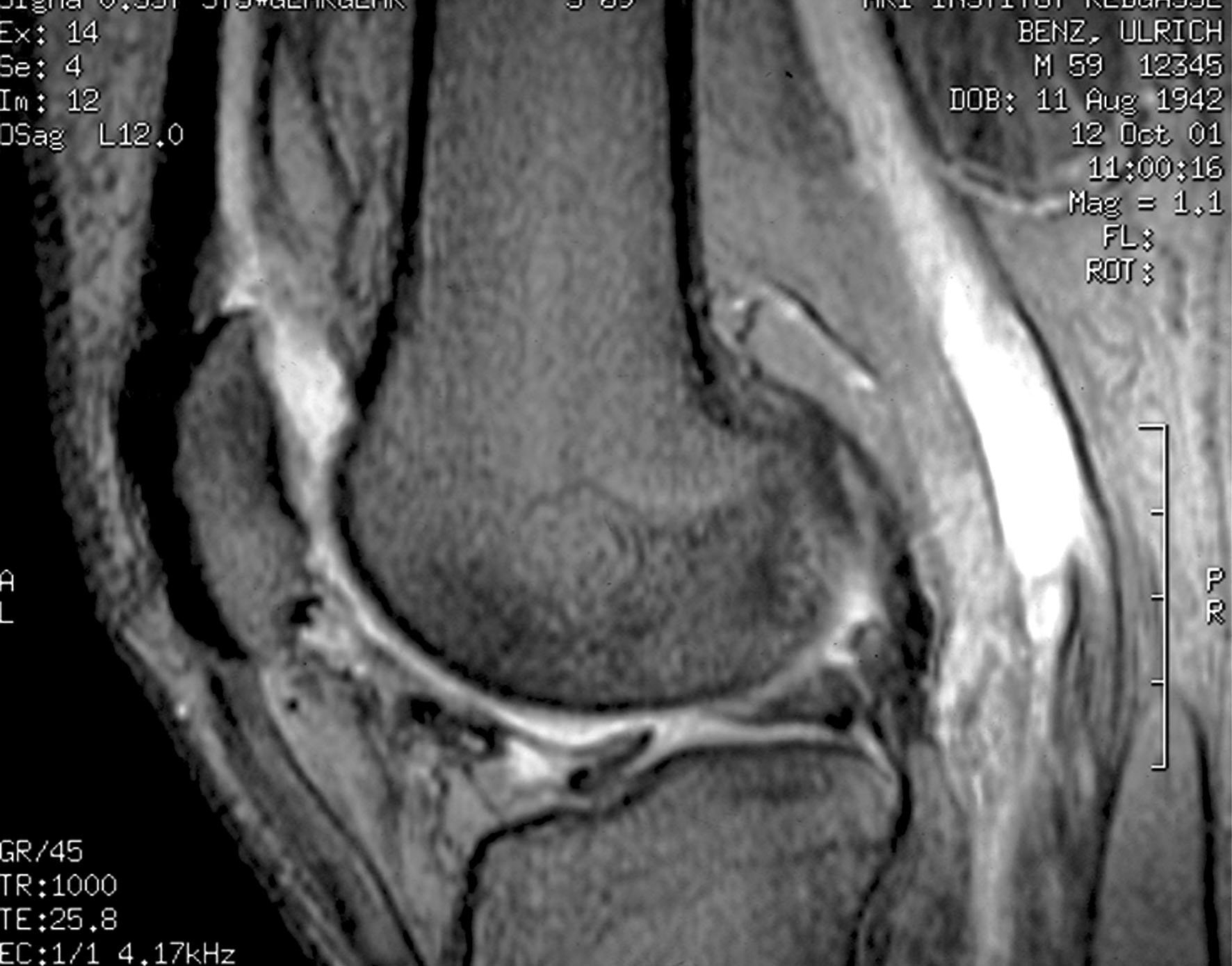

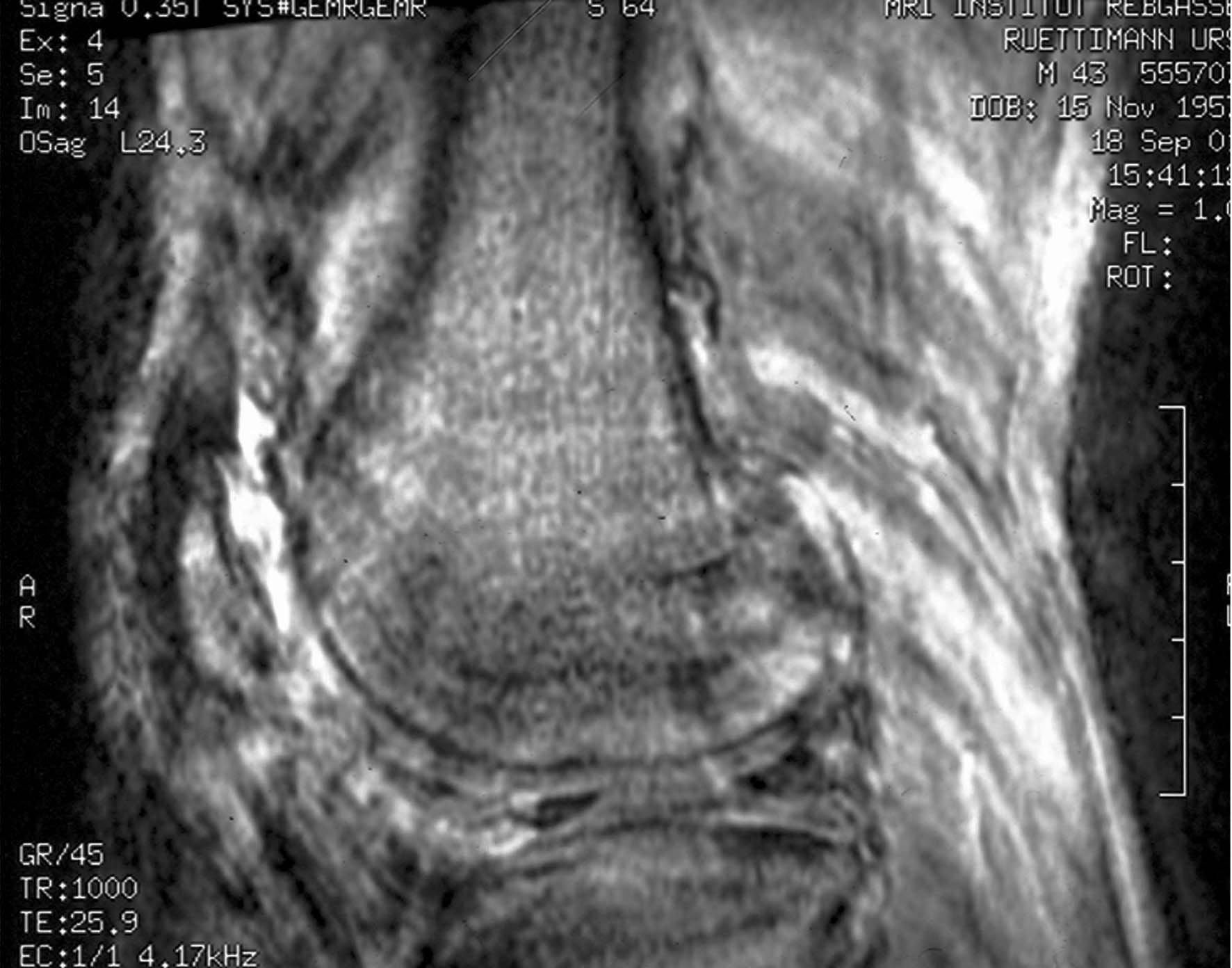

Knee MRI Scan
DIAMAGS OFF
DIAMAGS ON

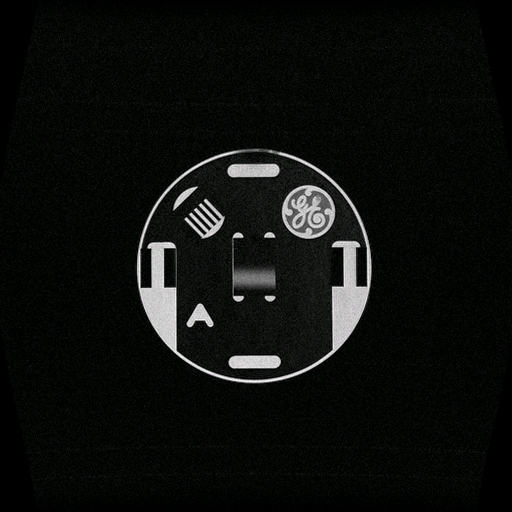

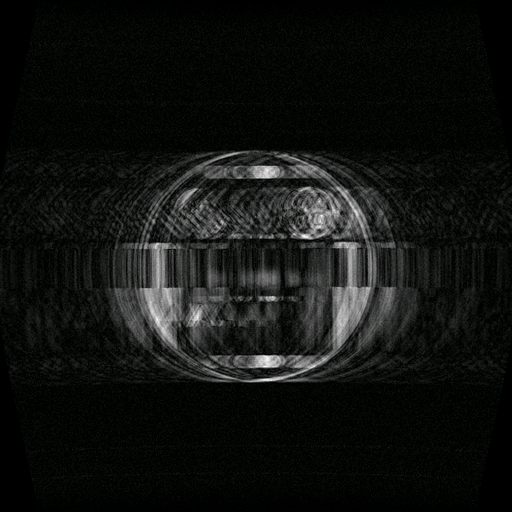

MRI Scan Quality
DIAMAGS OFF
DIAMAGS ON

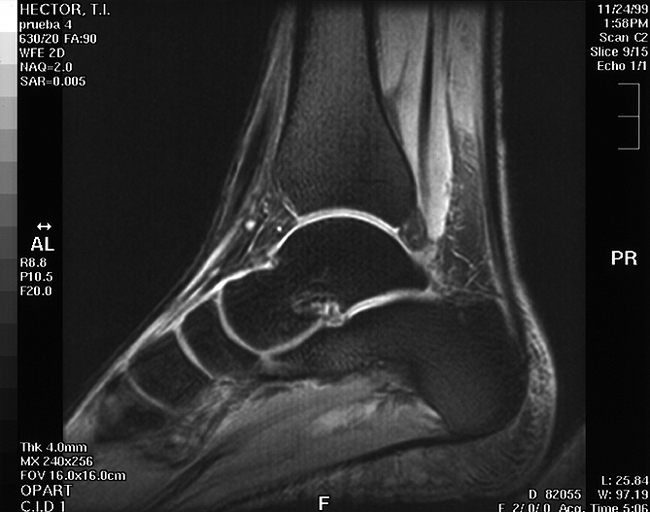

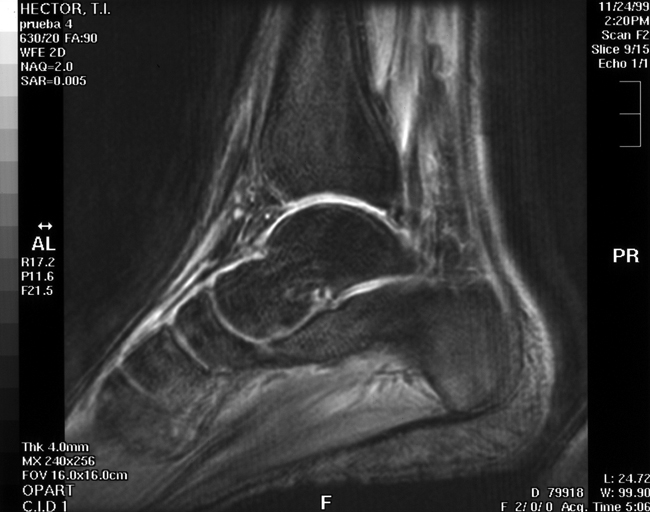

Ankle MRI Scan
DIAMAGS OFF
DIAMAGS ON
What it does
Detects external magnetic interference in real time
Produces corrective magnetic fields to neutralize disturbances
Ensures stable, clean magnetic environment around the MRI bore
Why it solves the problem
Converts marginal or rejected sites into approved MRI locations
Protects image quality and operational uptime
Compatible with any MRI system from 0.12 T to 7 T
Performance in action
Clear difference in image quality when system is ON vs OFF
Operates autonomously with continuous self-calibration
Result: stable magnetic field, approved sites and uncompromised diagnostic performance
Core Benefits
Turn Rejected Sites into Viable MRI Locations
Enables MRI installation in challenging environments where magnetic interference would otherwise prevent operation.
Protect Image Quality
Reduces magnetic disturbances to residual levels below 1 mG peak-to-peak, preserving diagnostic accuracy.
Real-Time Active Compensation
Continuously detects and corrects magnetic field fluctuations during MRI operation.
Universal Compatibility
Compatible with all MRI systems from 0.12 T to 7 T, including hybrid systems and electron microscopy.
Scalable & Customizable
Supports multi-channel, multi-axis compensation for complex interference scenarios.
Key Features
Technical Highlights
Magnetic Compensation Performance
- Compensation Range: up to ±500 mG
- Residual Magnetic Field: < 1 mG pk-pk (Attenuation Factor: 54 dB)
- Compensation Resolution: 0.003% of full scale
- ADC Resolution: 24-bit
Frequency Range
- DC: 0 – 5 Hz
- AC: 16 – 300 Hz
Multi-Axis & Multi-Source Capability
- Compensation on all three axes (X, Y, Z)
- Ability to manage multiple interference sources simultaneously (multi-channel system)
System Specifications
-356 × 203 × 228 mm
-450 × 450 × 450 mm
-0 – 40 °C
-Compensation coils custom-designed according to MRI room size
Frequently Asked Questions
Find answers to common questions about DIAMAGS SPEED
If the noise changes over time, do I need to change the Diamags Speed device?
+
No, the Diamags Speed automatically adapts to the disturbance compensating it efficiently.
Where can I find the troubleshooting guide?
+
You can download the complete troubleshooting guide here:
Diamags Troubleshooting Guide (PDF)
Can you notice when the Diamags Speed is compensating an external noise?
+
No, you do not notice anything. The only effect is to have artifact-free reports.
Where will the Diamags Speed system be placed?
+
The Diamags Speed main unit device is located in the technical room.
What happens if the power goes out?
+
The Diamags Speed resumes properly and automatically as soon as the power is recovered.
Does the Diamags Speed compensation system physically interact with the MRI medical device?
+
No, because it is not connected in any way to the MRI. It only remedies electromagnetic field interferences on site.
Is preventive maintenance necessary?
+
No, because the Diamags Speed system is robust and built to minimize maintenance.
When is the Diamags Speed system installed in the MRI installation cycle?
+
The Coils are installed during the installation of the shielded room, while the Diamags Speed system (main unit) will be installed and calibrated after the installation of the magnet.
Is it possible to install the Diamags Speed system with an already functioning MRI?
+
Yes, it is possible to install the Diamags Speed system by adapting the coils to the shielded room.
What disturbances does Diamags Speed compensate?
+
Diamags Speed compensates moving metal masses such as trains, cars, subways and elevators, as well as interferences or disturbances generated by electrical panels or high voltage lines.
Can I request remote assistance?
+
Of course. With a simple internet connection, we can intervene remotely at any time.
